Step-by-Step: How to Register and Use the TreeTrace Web Service

This guide will walk you through the exact steps to register, get approved, and use your credentials with the TreeTrace API.

---

0) URLs

1. Development:

   • Web Service: https://treetracesrv-dev.sylvamo.com
   • Register Website: https://register-treetracesrv-dev.sylvamo.com

2. Production:

   • Web Service: https://treetracesrv.sylvamo.com
   • Register Website: https://register-treetracesrv.sylvamo.com

   Note: Web Service is an API only; It does not have any web pages or graphical user interface accessible via a browser. All interactions with the service are performed programmatically via HTTP requests.

---

1) Register for Access

1. Go to the Registration Page:
   Open the web app and navigate to the home page (/).

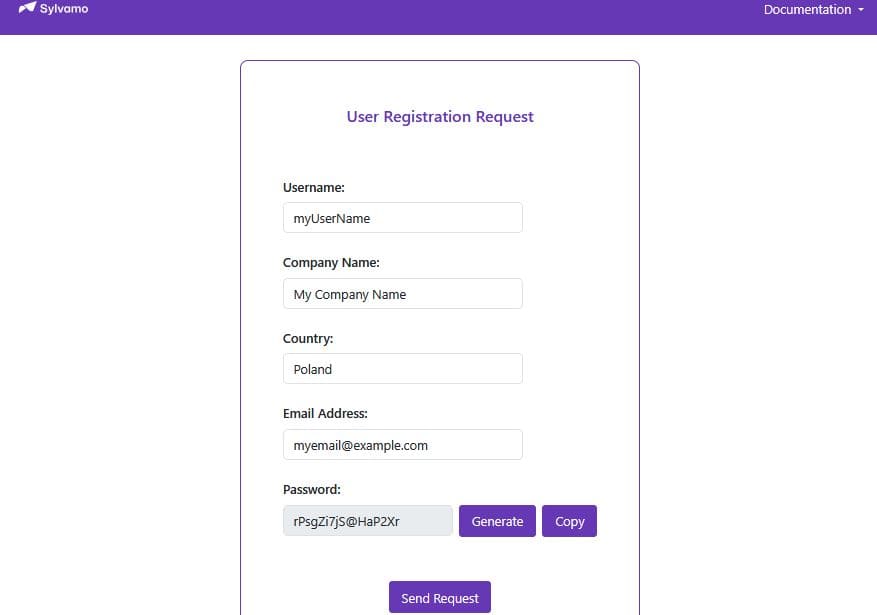

2. Fill Out the Form:

   • Enter your Username (must be unique).
   • Enter your Company Name.
   • Select your Country from the dropdown.
   • Enter your Email Address.
   • Click Generate to create a secure password.
   • Copy and save your password somewhere safe.
     You will not be able to see or recover it later!
   • Click Send Request to submit your registration.

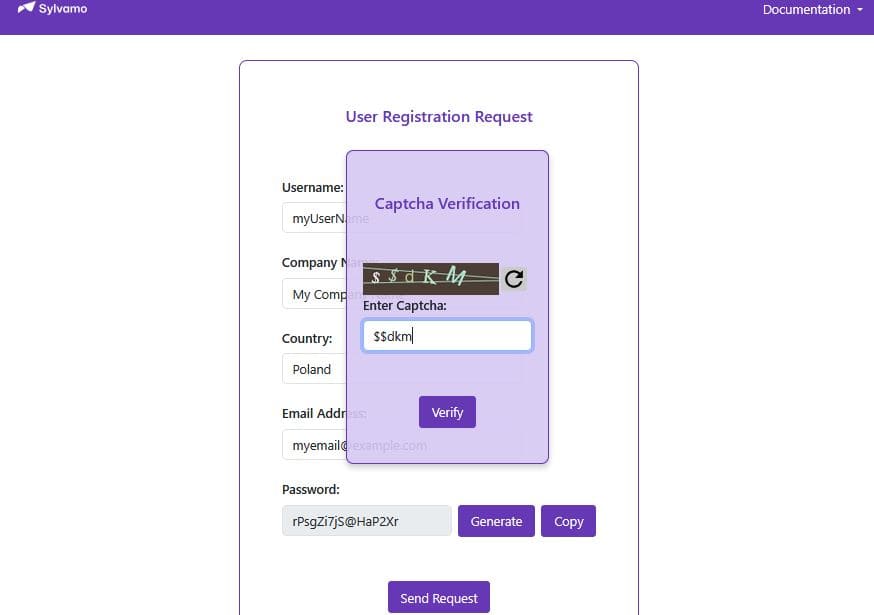

3. Captcha Verification:

   • Complete the captcha challenge and click Verify.



---

2) Wait for Admin Approval

• What happens now?
  Your registration is pending.
  Please wait until the administrator review your request. You will receive an email once your account has been activated.

• No access yet:
  You cannot use the API until you are approved.

---

3) Run the Demo Client App in VS Code

Note: This guide uses Visual Studio Code (VS Code) to demonstrate how to build the demo app, as it is a free, cross-platform tool available on Windows, macOS, and Linux. If you prefer to use Visual Studio, you can do so - the process is very similar and does not require separate instructions.

1. Open Visual Studio Code.
2. Create a new file (for example, DemoClientApp.cs).

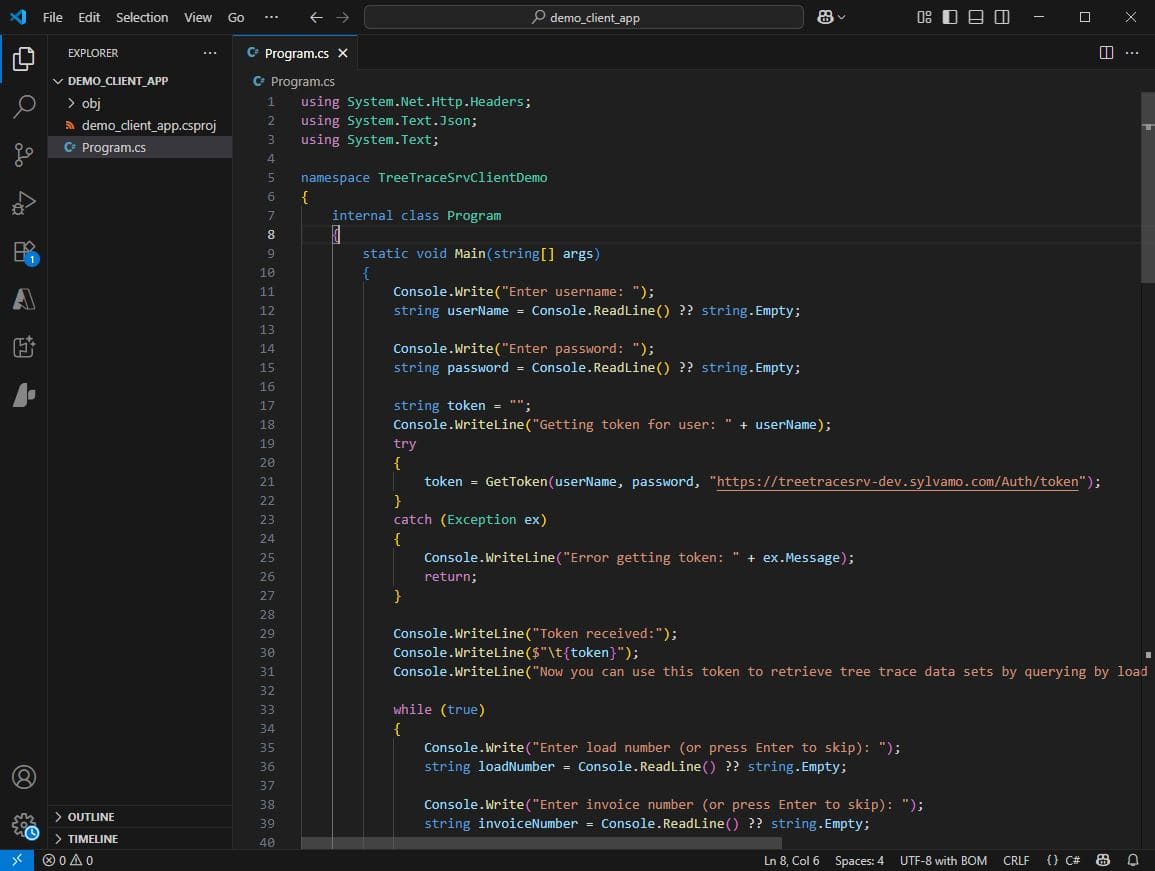

3. Copy the demo client code from the /cscodedemo page or the provided example.
4. Paste the code into your new file and save it.

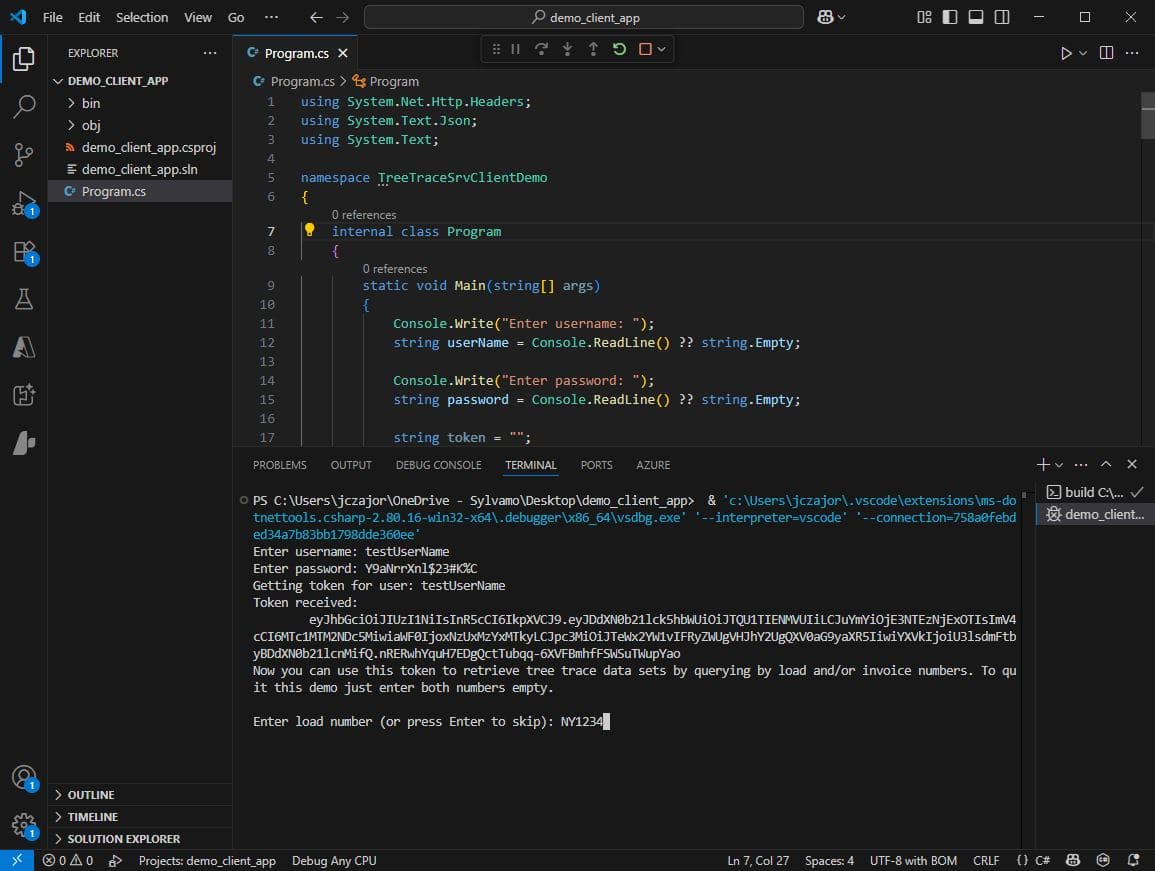

5. Open a terminal in VS Code and run: dotnet run DemoClientApp.cs or, if you have a project, add the file to your project and run: dotnet run
6. Follow the prompts in the console to enter your username and password.

---

4) Use Your Credentials in the Demo Client

1. Enter your credentials:

   • Username: The one you registered with.
   • Password: The one you generated and saved.

2. Get a Token:
   The client will use your credentials to request an authentication token (it's valid for 30 min).

3. Query the API:
   Use the token to request tree trace data by load or invoice number or Customer PO number.

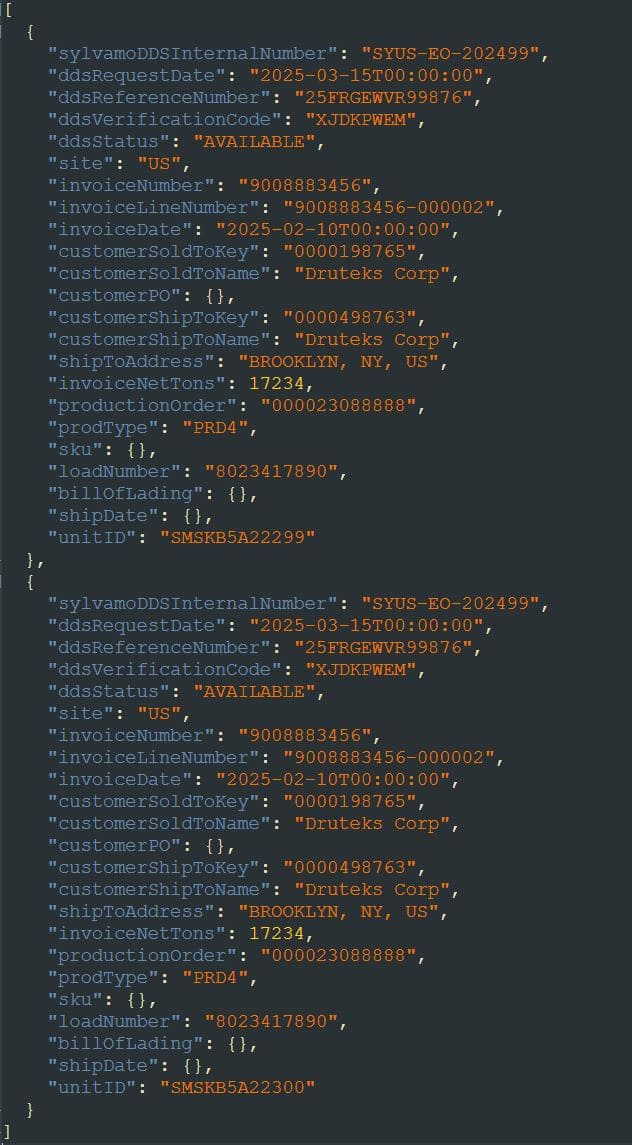

This is how the sample output data will look like:

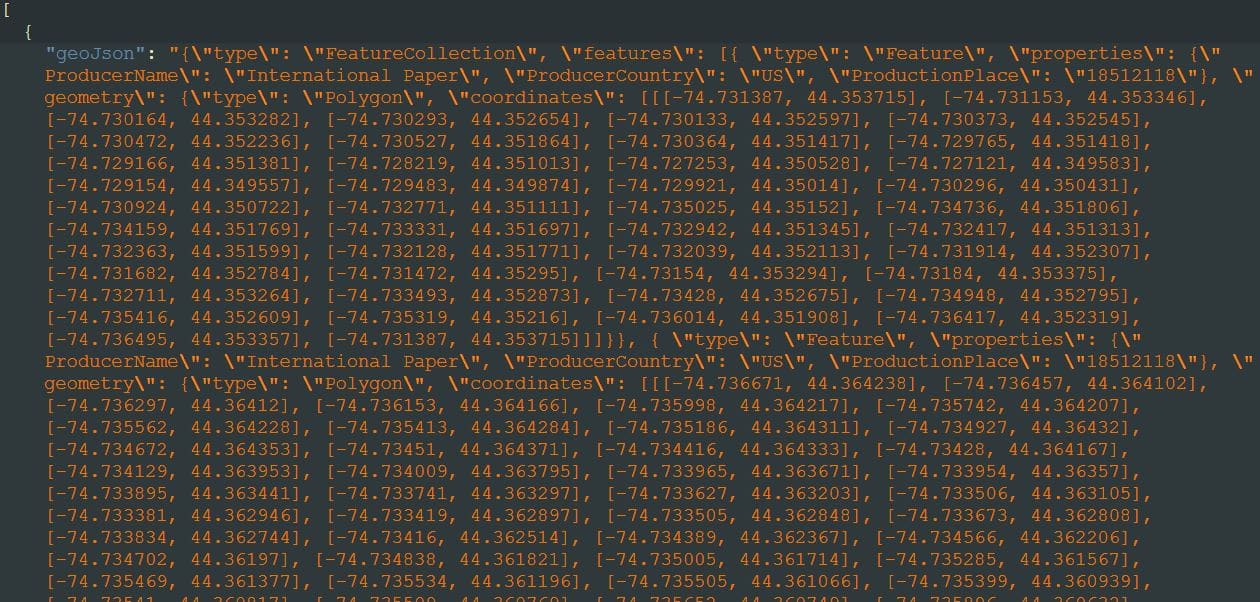

Then the demo app will ask you if you want to retrieve GeoJson as well. If you answer "y" or "yes" you can expect output like this:

You can integrate the TreeTrace Web Service with your own application.

---
